| Engine Detail |

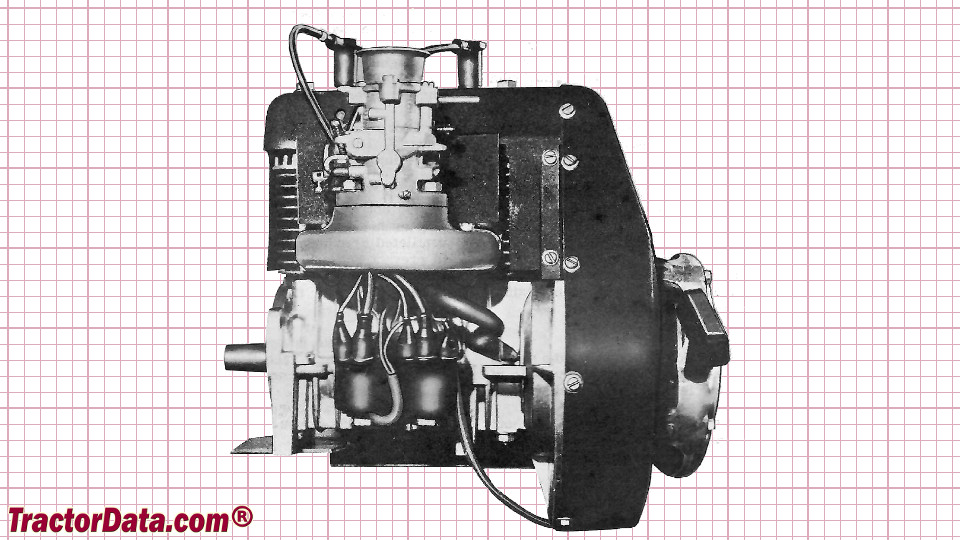

| Bolens-Gutbrod 2Z340 |
| gasoline |
| 2-cylinder |
| air-cooled horizontal-shaft inline |
| Displacement | 340 cc
20.75 ci
|
| Bore/Stroke | 2.44x2.17 inches
62 x 55 mm
|
| Power | 24 hp
17.9 kW
|
| Fuel system | Tillotson HR89A carburetor
|
| Starter type | manual recoil
|
| Sparkplug | Champion L-78
|
| Sparkplug gap | 0.020 inches
0.508 mm
|
| Bolens 83/340 Engine |
 |
