Series map:
83/293
83/295
18.0hp
22.0hp
| Engine Detail |
| Bolens-Gutbrod 2Z293 |
| gasoline |
| 2-cylinder |
| air-cooled horizontal-shaft inline |
| Displacement | 292 cc
17.82 ci
|
| Bore/Stroke | 2.28x2.17 inches
58 x 55 mm
|
| Power | 18 hp
13.4 kW
|
| Fuel system | Tillotson HR89A carburetor
|
| Rated RPM | 6000
|
| Starter type | manual recoil
|
| Sparkplug | Champion L-78
|
| Sparkplug gap | 0.020 inches
0.508 mm
|

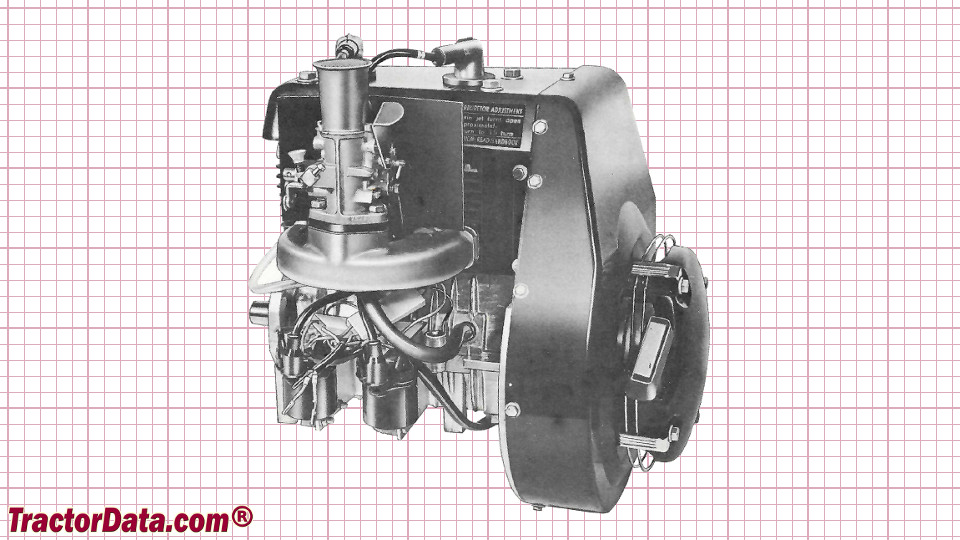

| Bolens 83/293 Engine |
 |
