| Engine Detail |
| Kohler K399-2 |
| gasoline |
| 2-cylinder |
| air-cooled horizontal-shaft inline |
| Displacement | 399 cc
24.35 ci
|
| Bore/Stroke | 2.56x2.36 inches
65 x 60 mm
|
| Power | 26 hp
19.4 kW
|
| Fuel system | Tillotson HR-42A carburetor
|
| Cooling system | fan
|
| Compression | 10.5:1
|
| Starter type | manual recoil
|
| | electric OptOptional
|
| Sparkplug | Champion K9
|
| Sparkplug gap | 0.020 inches
0.508 mm
|

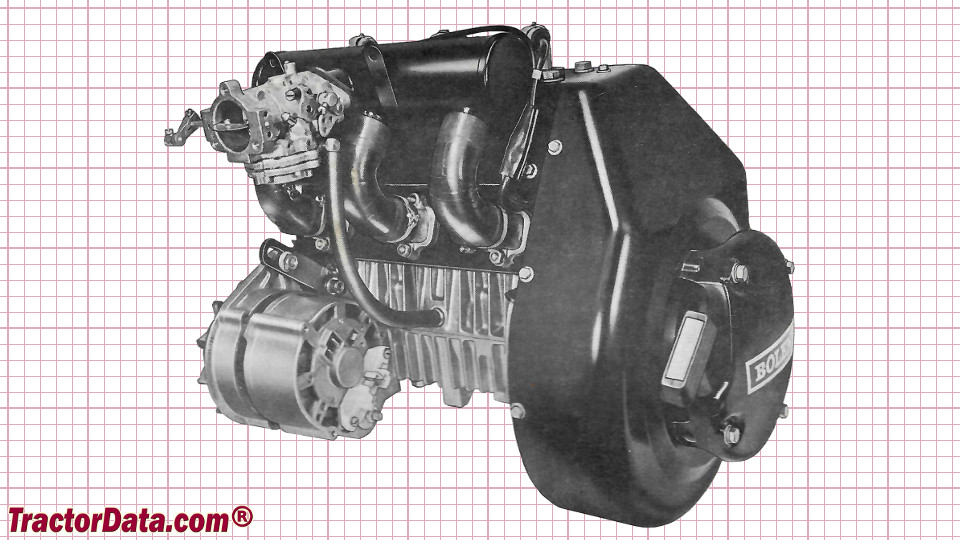

| Bolens Sprint TW-399 Engine |
 |
