Craftsman 917.25772 Engine

Craftsman 917.25772 tractor photo
GT6000 Series
Garden tractor
AYP built
Series map:
Engine Detail
Kohler MV18S
air-cooled vertical-shaft opposed-twin
Displacement691 cc
42.18 ci
Bore/Stroke3.12x2.75 inches
79 x 70 mm
Power (gross)18 hp
13.4 kW
Starter volts12
SparkplugChampion RV17YC
Sparkplug gap0.025 inches
0.635 mm
Engine Oil
917.25772 gasoline engine oil chart
Oil capacity2 qts
1.9 L
Oil change25 h
Craftsman 917.25772 Engine

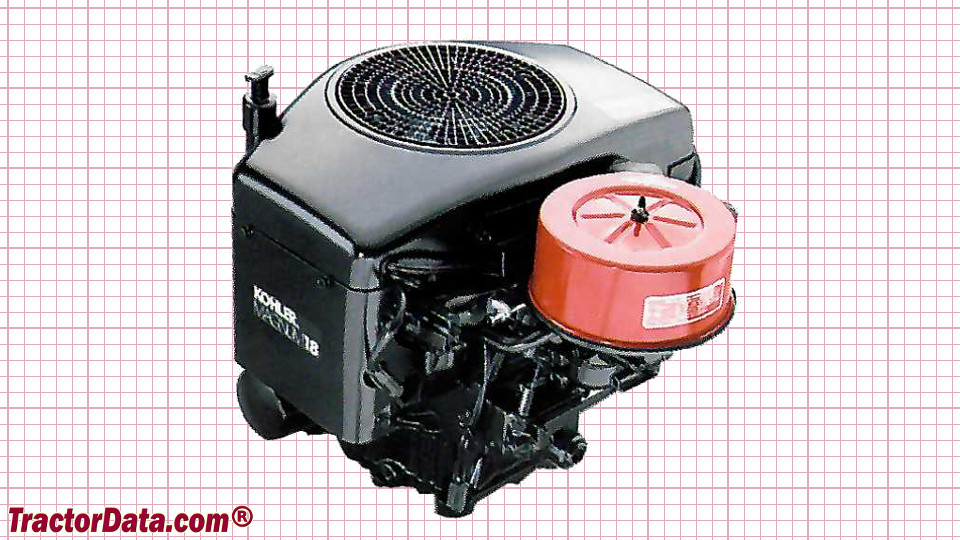

Craftsman 917.25772 engine image
