Lawn Tractors > Craftsman > 917.25771

Craftsman 917.25771 Engine



Craftsman 917.25771 lawn tractor photo
1994
GT6000 Series
Garden tractor
AYP built
Engine Detail
Briggs & Stratton 422707
gasoline
2-cylinder
air-cooled vertical-shaft opposed-twin
Displacement693 cc
42.33 ci
Bore/Stroke3.44x2.28 inches
87 x 58 mm
Power (gross)18 hp
13.4 kW
Starterelectric
Starter volts12
SparkplugChampion RJ-19LM
Sparkplug gap0.030 inches
0.762 mm
Intake valve clearance0.005 inches
0.127 mm
Exhaust valve clearance0.008 inches
0.203 mm
Engine Oil
917.25771 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
Oil change25 h
Craftsman 917.25771 Engine

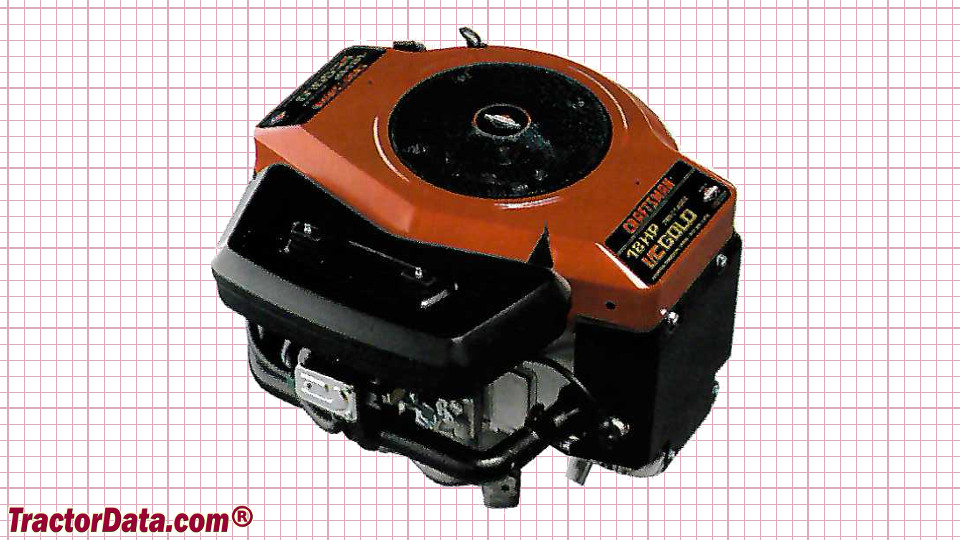

Craftsman 917.25771 engine image
