Lawn Tractors > Craftsman > 917.25764

Craftsman 917.25764 Engine



Craftsman 917.25764 lawn tractor photo
1994
Lawn tractor
AYP built
Engine Detail
Briggs & Stratton 28N707
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement465 cc
28.4 ci
Bore/Stroke3.44x3.06 inches
87 x 78 mm
Power (gross)15 hp
11.2 kW
Starterelectric
Starter volts12
SparkplugChampion RJ-19LM
Intake valve clearance0.006 inches
0.152 mm
Exhaust valve clearance0.010 inches
0.254 mm
Engine Oil
917.25764 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
Oil change25 h
Craftsman 917.25764 Engine

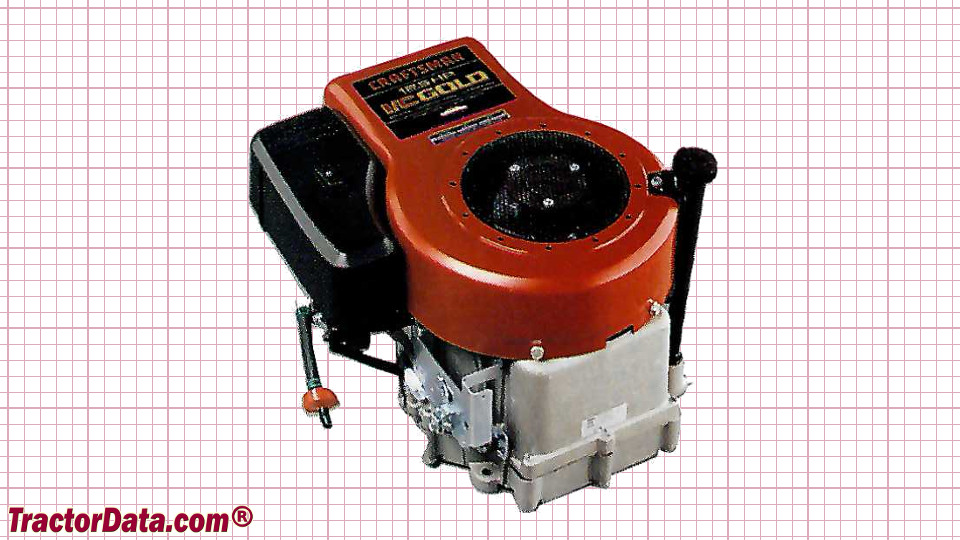

Craftsman 917.25764 engine image
