| | 1976 - 1977 |
| Tube Frame Series | | Garden tractor |
|
Series map:
G-11
G-12
G-14
11.0hp
12.0hp
14.0hp
| Transmission |
| Transmission | Bolens
|
| Type | belt-driven gear
|
| Gears | 6 forward and 2 reverse
|
| Oil capacity | 2.5 qts
2.4 L
|
| Oil type |
|

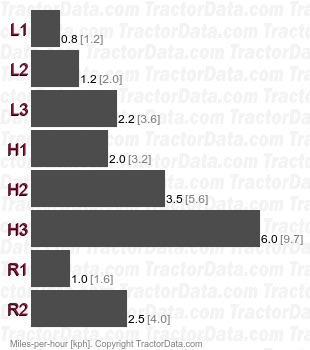

| Speeds |
|

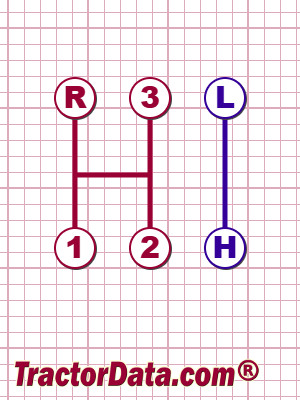

| Shift Pattern |
 |
