Lawn Tractors > Craftsman > 917.27348

Craftsman 917.27348 Engine



Craftsman 917.27348 lawn tractor photo
2003
DLT 3000 Series
Lawn tractor
AYP built
Series map:
917.27347
917.27348
20.0hp
20.0hp
Engine Detail
Kohler CV674
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement671 cc
41 ci
Bore/Stroke3.15x2.64 inches
80 x 67 mm
Power (gross)20 hp
14.9 kW
Starterelectric
Starter volts12
SparkplugChampion RC12YC
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

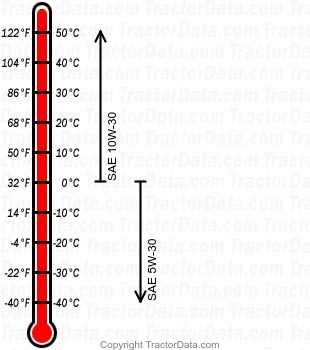

917.27348 gasoline engine oil chart
Oil capacity2 qts
1.9 L
