Craftsman 917.27314 Engine


Craftsman 917.27314 lawn tractor photo
2003
LT 2000 Series
Lawn tractor
AYP built
Series map:
917.27313
917.27314
17.0hp
17.0hp
Engine Detail
Kohler CV490
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement490 cc
29.9 ci
Bore/Stroke3.54x3.03 inches
90 x 77 mm
Power (gross)17 hp
12.7 kW
Starterelectric
Starter volts12
SparkplugChampion RC12YC
Sparkplug gap0.040 inches
1.016 mm
Engine Oil

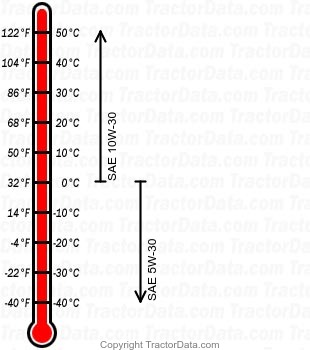

917.27314 gasoline engine oil chart
Oil capacity2 qts
1.9 L
