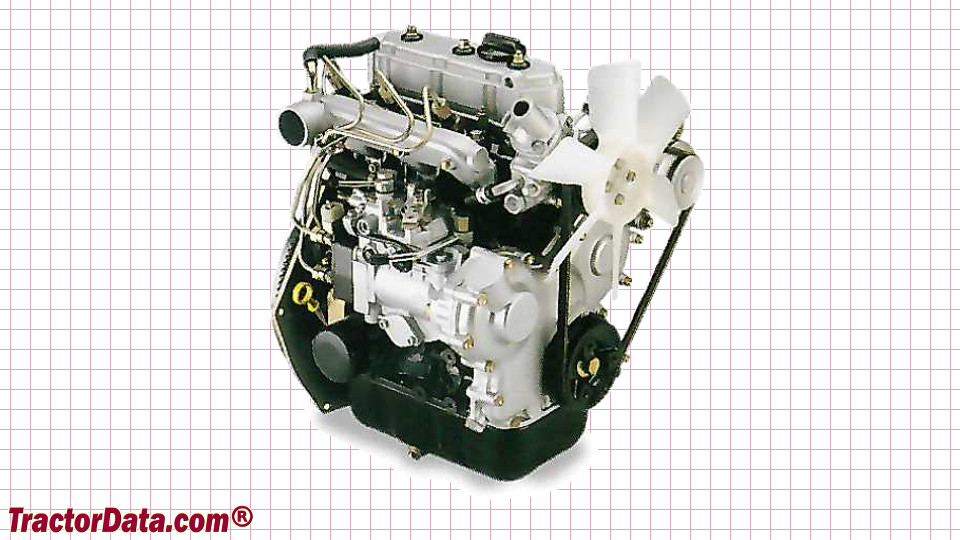

AGCO 2024D Engine
|
|
Note: the AGCO model 2024D is the same as the Simplicity Legacy 24.5. The following data is from the Legacy 24.5 listing. |
| Engine Detail | |
| Briggs & Stratton DM 950 | |
| diesel | |
| 3-cylinder | |
| liquid-cooled horizontal-shaft inline | |
| Displacement | 952 cc 58.1 ci |
| Bore/Stroke | 2.87x3.07 inches 73 x 78 mm |
| Power (gross) | 24.5 hp 18.3 kW |
| Compression | 24:1 |
| Starter | electric |
| Starter volts | 12 |
| Oil capacity | 3.2 qts 3.0 L |
| Coolant capacity | 6 qts 5.7 L |
| AGCO 2024D Engine | |
 |
