Lawn Tractors > AGCO > 2023H

AGCO 2023H Transmission



AGCO 2023H lawn tractor photo
1999 - 2003
2000 Series
Garden tractor
Simplicity built
Series map:
2020LC
2023H
2024D
20.0hp
23.0hp
24.5hp

Note: the AGCO model 2023H is the same as the Simplicity Legacy 23. The following data is from the Legacy 23 listing.
Transmission
TransmissionSundstrand 15U
Typeshaft-driven hydrostatic
Gearsinfinite forward and reverse (2-range)
Oil capacity6 qts
5.7 L
Oil type
ATF F
Oil change400 h
Sundstrand 15 hydrostatic with Peerless 2600 transaxle.
Speeds

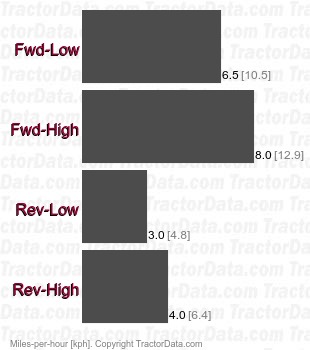

2023H 15U shaft-driven hydrostatic speeds
