Lawn Tractors > John Deere > Z860A

John Deere Z860A Engine



John Deere Z860A lawn tractor photo
2008 - 2009
Z-Trak PRO 800 Series
Zero-turn mower
Series map:
Z850A
Z860A
31.0hp
34.0hp
Engine Detail
Kawasaki FX921V
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement999 cc
61 ci
Bore/Stroke3.50x3.20 inches
89 x 81 mm
Power34 hp
25.4 kW
Air cleanerdry
Compression8.4:1
Idle RPM1550-3600
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Point gap0.012 inches
0.305 mm
Intake valve clearance0.005 inches
0.127 mm
Exhaust valve clearance0.005 inches
0.127 mm
Engine Oil

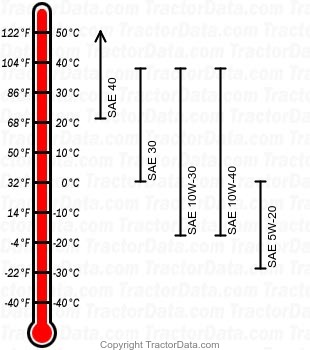

Z860A gasoline engine oil chart
Oil capacity2.0 qts
1.9 L
Oil change100 h
