John Deere S120 Engine


John Deere S120 lawn tractor photo
2021 -
S100 Series
Lawn tractor
Series map:
S110
S120
S130
19.0hp
22.0hp
22.0hp
Engine Detail
Briggs & Stratton 44N677
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement724 cc
44.2 ci
Bore/Stroke3.12x2.89 inches
79 x 73 mm
Power22 hp
16.4 kW
Air cleanerdry
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

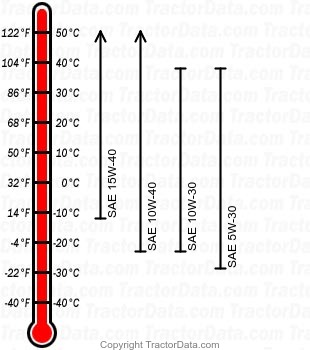

S120 gasoline engine oil chart
Oil capacity2 qts
1.9 L
Oil change50 h
