Craftsman 917.27495 Engine

Craftsman 917.27495 lawn tractor photo
GT 3000 Series
Garden tractor
AYP built
Engine Detail
Kohler CV624
air-cooled vertical-shaft V-Twin
Displacement622 cc
38 ci
Bore/Stroke3.03x2.64 inches
77 x 67 mm
Power21 hp
15.7 kW
Starter volts12
SparkplugChampion RC12YC
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

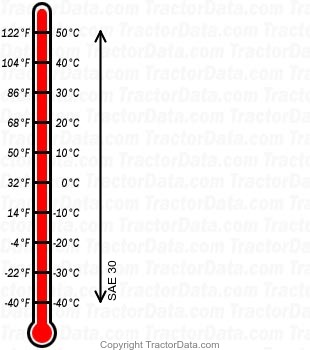

917.27495 gasoline engine oil chart
Oil capacity2.25 qts
2.1 L
Oil change25 h
