Craftsman 917.25535 LT 10-36 Engine


Craftsman 917.25535 LT 10-36 lawn tractor photo
1980
Roper built
Engine Detail
Tecumseh TVM220
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement357 cc
21.82 ci
Bore/Stroke3.31x2.53 inches
84 x 64 mm
Power10 hp
7.5 kW
Starterelectric
Starter volts12

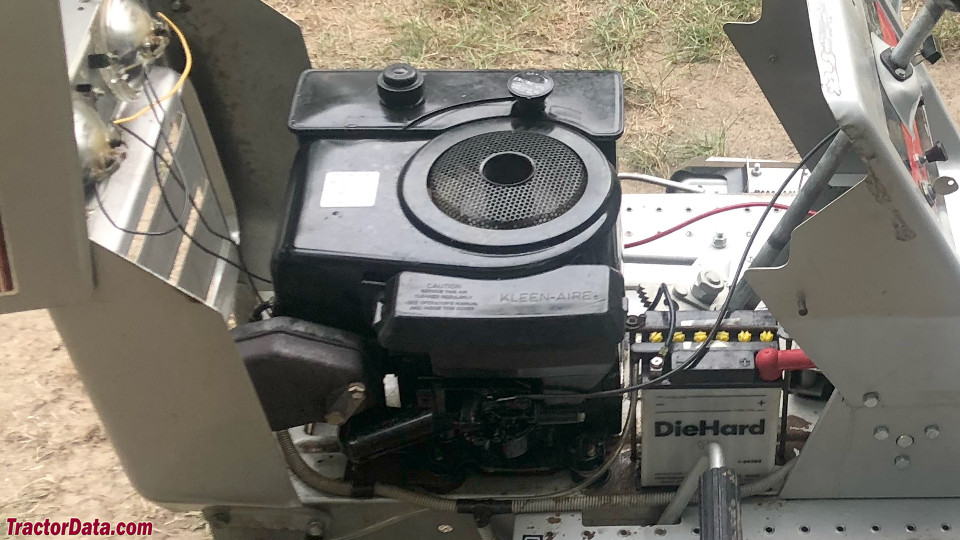

Craftsman 917.25535 Engine
Craftsman 917.25535 engine image
Image courtesy of Jay Wilson
