Craftsman 917.27310 Engine


No photo available
2000
Garden tractor
AYP built
Engine Detail
Kohler CV22S
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement:673 cc
41.1 ci
Bore/Stroke:3.15x2.64 inches
80 x 67 mm
Power:22 hp
16.4 kW
Starter:electric
Starter volts:12
Sparkplug:Champion RC12YC
Sparkplug gap:0.030 inches
0.762 mm
Engine Oil

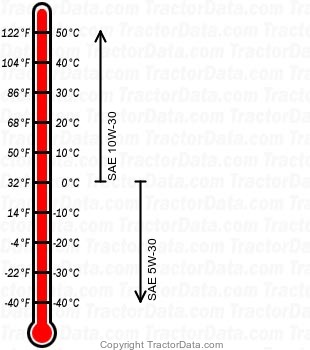

917.27310 gasoline engine oil chart
Oil capacity:2.1 qts
2.0 L
Oil change:25 h
