Gravely 8129 Transmission


No photo available
1980
8000 Series
Garden tractor
Series map:
8128
8129
8169
12.0hp
12.0hp
16.0hp
Transmission
Typeshaft-driven gear
Gears8 forward and 4 reverse
Four gears (1-4) in two ranges (low-high) with forward/reverse clutches. The directional clutch must be in neutral to shift gears or ranges.

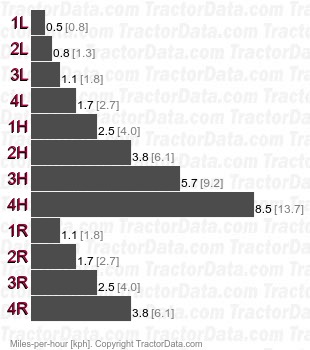

Speeds
8129  shaft-driven gear speeds
