Craftsman 917.25156 Engine

Craftsman 917.25156 lawn tractor photo
Garden tractor
AYP built
Engine Detail
Kohler CV22
air-cooled vertical-shaft V-Twin
Displacement624 cc
38.1 ci
Bore/Stroke3.03x2.64 inches
77 x 67 mm
Power22.5 hp
16.8 kW
Fuel systemcarburetor
Starter volts12
SparkplugChampion RC12YC
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

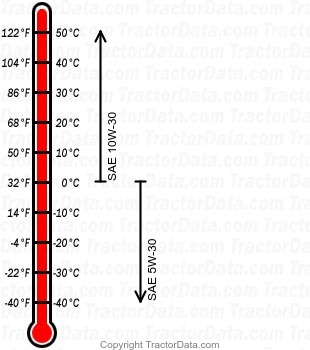

917.25156 gasoline engine oil chart
Oil capacity4.2 qts
4.0 L
