| | 1997 - 1998 |
| LX 100 Series | | Lawn tractor |
|
| Engine Detail |

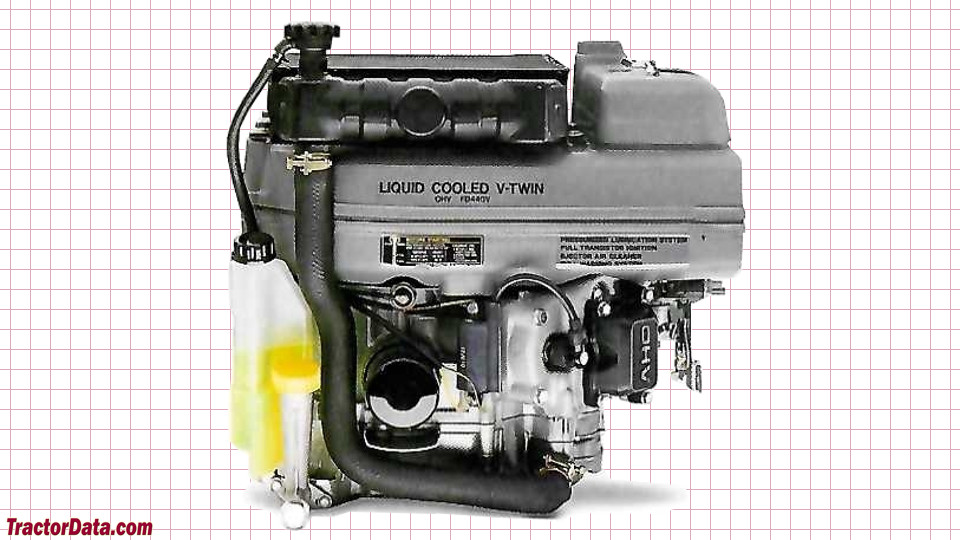

| Kawasaki FD440V |
| gasoline |
| 2-cylinder |
| liquid-cooled vertical-shaft V-Twin |
| Displacement | 437 cc
26.7 ci
|
| Bore/Stroke | 2.64x2.44 inches
67 x 62 mm
|
| Power (gross) | 15 hp
11.2 kW
|
| Air cleaner | dry with foam pre-cleaner
|
| Compression | 9.3:1
|
| Rated RPM | 3350
|
| Idle RPM | 1550-3350
|
| Starter | electric
|
| Starter volts | 12
|
| Oil capacity | 1.6 qts
1.5 L
|
| John Deere LX178 Motorsports Engine |
 |
