Craftsman 917.25766 Engine


Craftsman 917.25766 lawn tractor photo
1994
LT4000 Series
Lawn tractor
AYP built
Engine Detail
Kohler CV15S
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement426 cc
26 ci
Bore/Stroke3.55x2.64 inches
90 x 67 mm
Power (gross)15.5 hp
11.6 kW
Torque24.5 lb-ft
33.2 Nm
Torque RPM2400
Starterelectric
Starter volts12
SparkplugChampion RC12YC
Sparkplug gap0.030 inches
0.762 mm

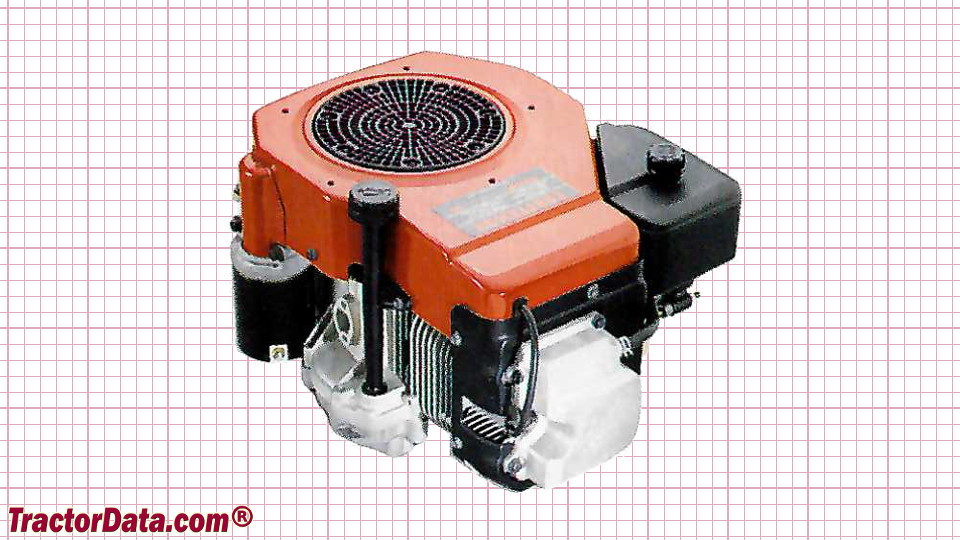

Craftsman 917.25766 Engine
Craftsman 917.25766 engine image
