John Deere E130 Engine

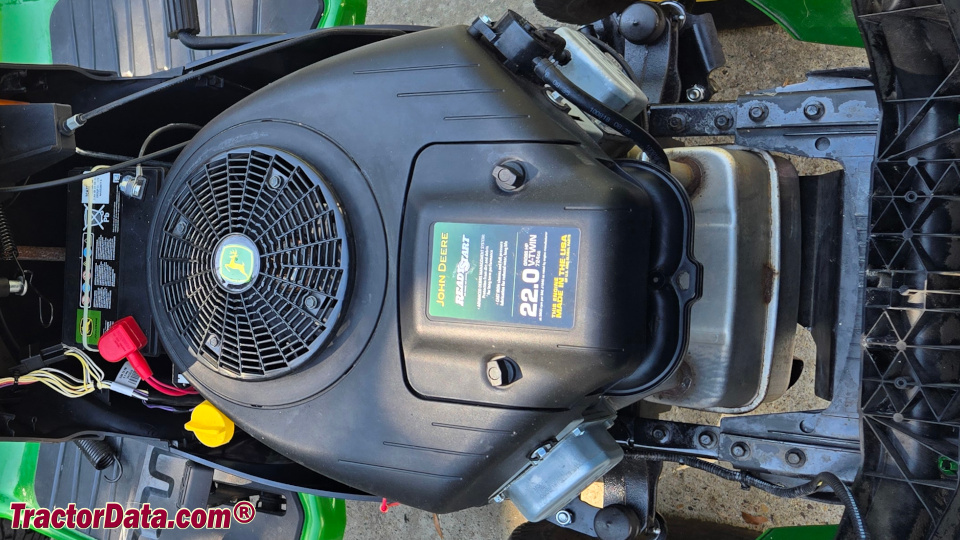

John Deere E130 lawn tractor photo
2018 - 2020
E100 Series
Lawn tractor
Series map:
E120
E130
E140
20.0hp
22.0hp
22.0hp
Engine Detail
Briggs & Stratton 44N677
air gasoline
2-cylinder
vertical-shaft V-Twin
Displacement724 cc
44.18 ci
Bore/Stroke3.12x2.89 inches
79 x 73 mm
Power (gross)22 hp
16.4 kW
Starterelectric
Starter volts12
Oil capacity2.8 qts
2.6 L
Sparkplug gap0.030 inches
0.762 mm
