| | 1993 - 1994 |
| Lawn tractor | | AYP built |
|

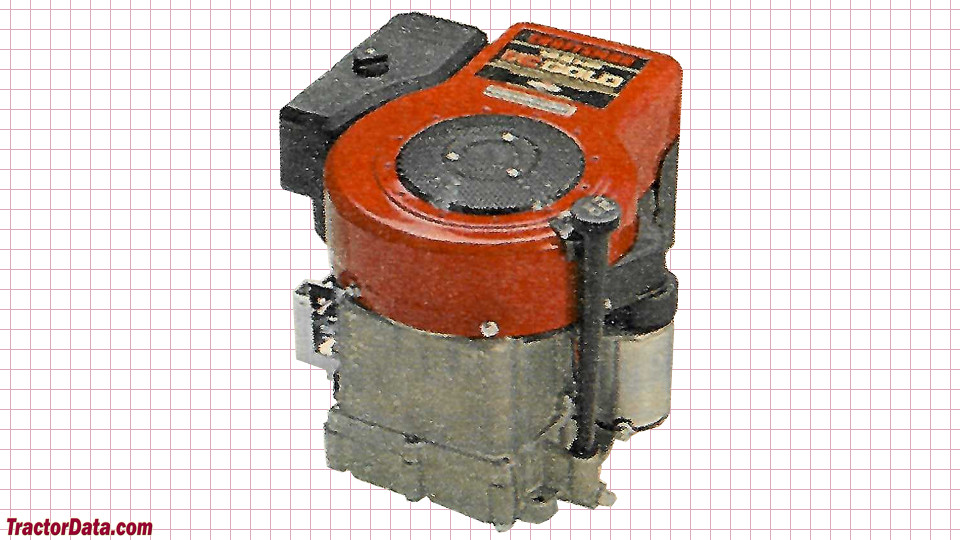

| Engine Detail |
| Briggs & Stratton 286707 |
| gasoline |
| 1-cylinder |
| air-cooled vertical-shaft |
| Displacement | 465 cc
28.4 ci
|
| Bore/Stroke | 3.44x3.06 inches
87 x 78 mm
|
| Power | 12.5 hp
9.3 kW
|
| Starter | electric
|
| Starter volts | 12
|
| Sparkplug | Champion RJ-19LM
|
| Engine Oil |
|
| Oil capacity | 1.5 qts
1.4 L
|
| Craftsman 917.25544 Engine |
 |
| Page information |
| Contact: Peter Easterlund |
| Updated on January 14, 2021 |
| Copyright 2021 TractorData LLC |
