Yanmar YM146 Engine


Yanmar YM146 lawn tractor photo
1983 - 1987
Garden tractor
Series map:
YM142
YM146
14.0hp
14.0hp
Engine Detail
Yanmar 2T75U-N
diesel
2-cylinder
liquid-cooled
Displacement635 cc
38.8 ci
Bore/Stroke2.95x2.84 inches
75 x 72 mm
Power14 hp
10.4 kW
Air cleanerdry
Rated RPM2600
Idle RPM1300-2825
Starter volts12
Coolant capacity3.7 qts
3.5 L
Engine Oil

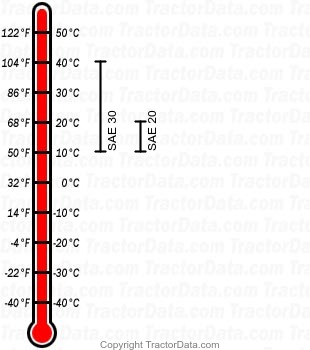

YM146 diesel engine oil chart
Oil capacity2.1 qts
2.0 L
Oil change100 h
