Gravely 8121 Transmission


Gravely 8121 lawn tractor photo
1978
8000 Series
Garden tractor
Series map:
8120
8121
8160
12.0hp
12.0hp
16.0hp
Transmission
Typeshaft-driven gear
Gears8 forward and 4 reverse
Four gears (1-4) in two ranges (low/high) with directional control lever (forward/reverse). Reverse speeds are the same in high or low range.

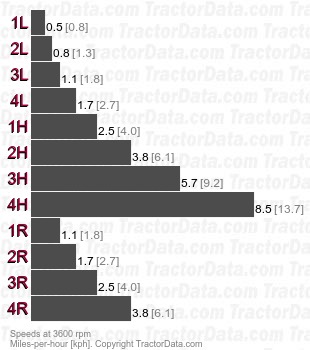

Speeds
8121  shaft-driven gear speeds
