Cub Cadet FMZ 50 Engine

Cub Cadet FMZ 50 lawn tractor photo
FMZ Series
Front-mount mower
Engine Detail
Kohler SV715
air-cooled vertical-shaft V-Twin
Displacement721 cc
44 ci
Bore/Stroke3.3x2.6 inches
84 x 66 mm
Power (gross)22 hp
16.4 kW
Starter volts12

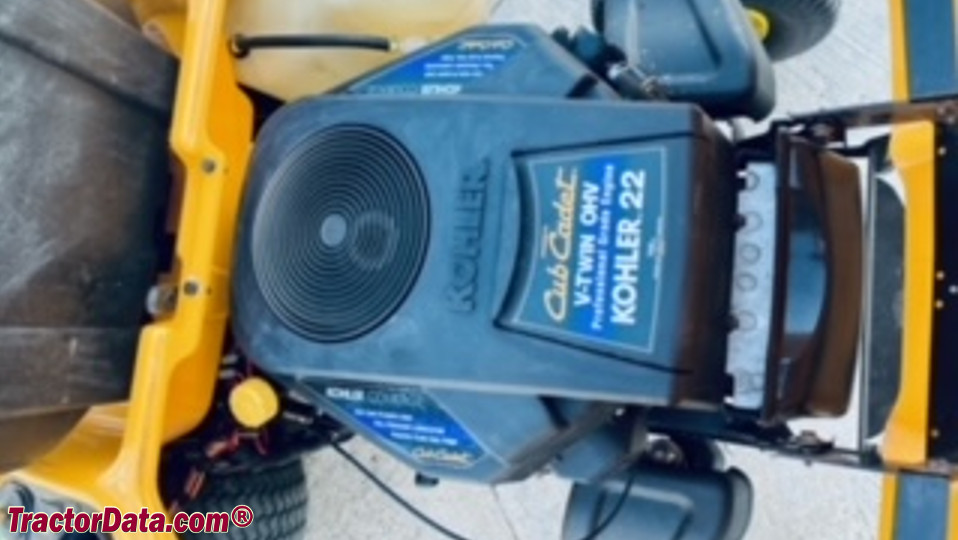

Cub Cadet FMZ 50 Engine
Cub Cadet FMZ 50 engine image
Image courtesy of Richard Gomez
