Ariens S-14G Engine


Ariens S-14G lawn tractor photo
1976 - 1978
S Series
Garden tractor
Series map:
S-12H
S-14G
S-14H
12.0hp
14.0hp
14.0hp
Engine Detail
Kohler K321
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement512 cc
31.27 ci
Bore/Stroke3.50x3.25 inches
89 x 83 mm
Power (gross)14 hp
10.4 kW
Fuel use1.35 gal/hour
5.1 l/hour
Air cleanerdry element with foam precleaner
Compression7.0:1
Starterelectric
Starter volts12
Sparkplug gap0.025 inches
0.635 mm
Engine Oil

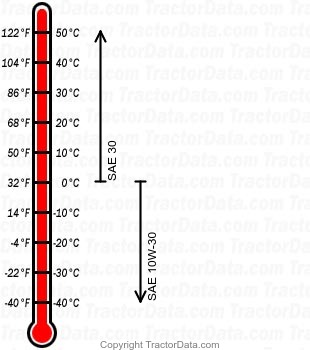

S-14G gasoline engine oil chart
Oil capacity2 qts
1.9 L
