Ariens HT18 934020 Engine

No photo available
1986 - 1995
Model year
Lawn tractor
Series:HT18 934020
High Sierra 1848
Engine Detail
Kohler MV18S
air-cooled vertical-shaft
Displacement:691 cc
42.18 ci
Bore/Stroke:3.125x2.75 inches
79 x 70 mm
Power (gross):18 hp
13.4 kW
Fuel use:1.8 gal/hour
6.8 l/hour
Starter volts:12
Sparkplug gap:0.020 inches
0.508 mm
Engine Oil

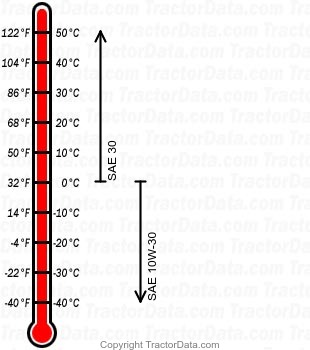

HT18 934020 gasoline engine oil chart
Oil capacity:1.5 qts
1.4 L
