John Deere GX85 Engine

John Deere GX85 lawn tractor photo
1997 - 2003
Riding lawn mower
Series map:
Engine Detail
Briggs & Stratton 28M707
air-cooled vertical-shaft
Displacement465 cc
28.4 ci
Bore/Stroke3.44x3.06 inches
87 x 78 mm
Power13 hp
9.7 kW
Air cleanerdry element
Starter volts12
Oil capacity1.7 qts
1.6 L

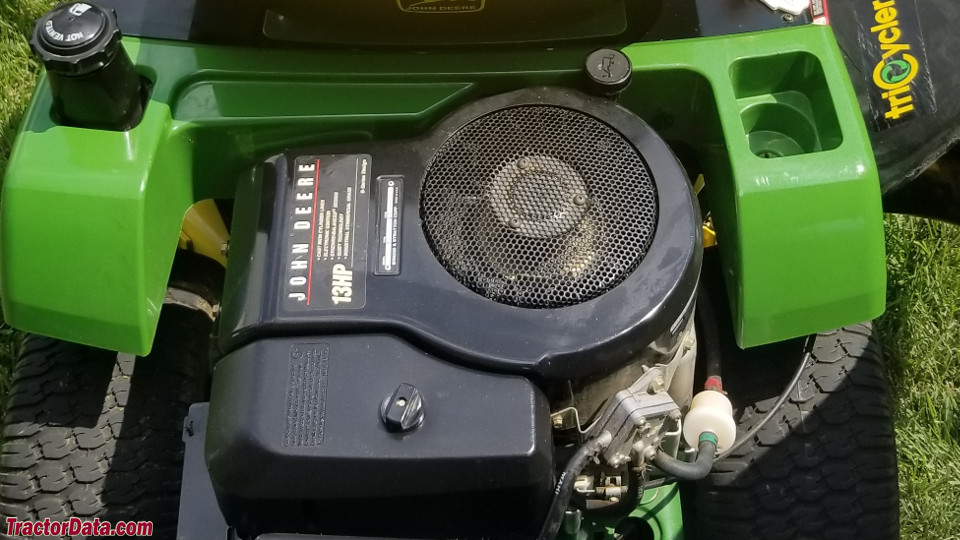

John Deere GX85 Engine
John Deere GX85 engine image
Image courtesy of Derek Woodward
