John Deere RX95 Engine


John Deere RX95 lawn tractor photo
1987 - 1990
Riding lawn mower
Series map:
RX75
RX95
9.0hp
12.5hp
Engine Detail
Kawasaki FB460V
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement460 cc
28.1 ci
Bore/Stroke3.5x2.91 inches
89 x 74 mm
Power12.5 hp
9.3 kW
Air cleanerdry element
Starterelectric
Starter volts12
SparkplugChampion RN11YC
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

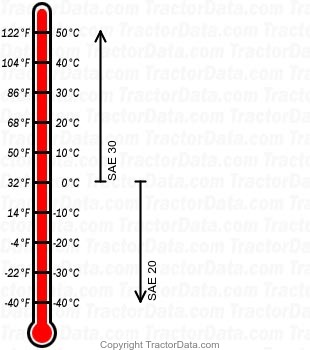

RX95 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
Oil change50 h
