Simplicity Legacy XL 27D Engine

Simplicity Legacy XL 27D lawn tractor photo
2004 - 2015
Legacy Series
Garden tractor
Series map:
Legacy XL 27LC
Legacy XL 27D
Engine Detail
Vanguard 582447
liquid-cooled horizontal-shaft inline
Displacement952 cc
58.1 ci
Bore/Stroke2.83x3.07 inches
72 x 78 mm
Power (gross)27 hp
20.1 kW
Torque44 lb-ft
59.7 Nm
Torque RPM2400
Starter volts12
Oil capacity3.2 qts
3.0 L
Coolant capacity6 qts
5.7 L
Simplicity Legacy XL 27D Engine

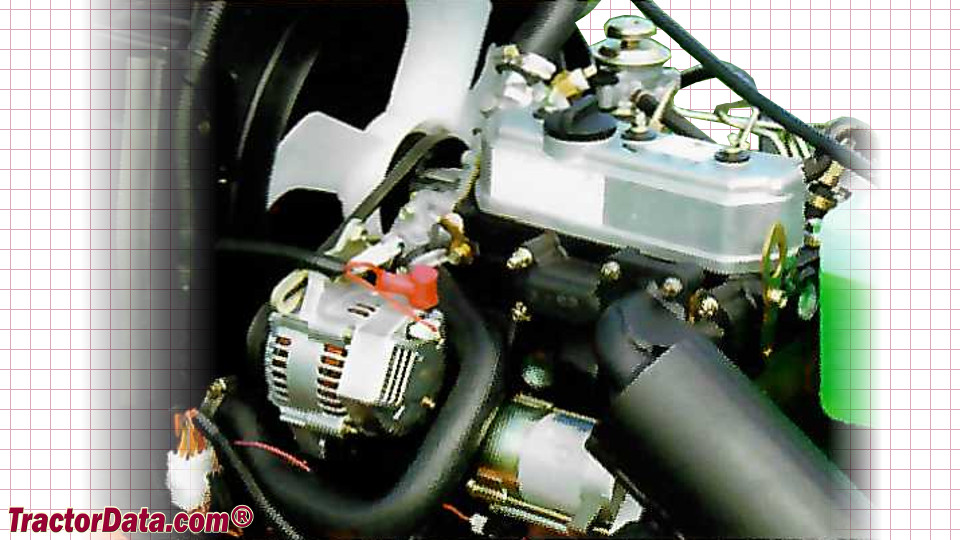

Simplicity Legacy XL 27D engine image
