Power King 2414 Transmission


Power King 2414 lawn tractor photo
1977 - 1988
Model year
2400 Series
Garden tractor
Transmissions overview
3-speed gear
4-speed gear
9-speed gear
Transmission
TransmissionBorg-Warner T92
Typeshaft-driven gear
Gears3 forward and 1 reverse
Clutch152.4mm dry disc
Oil capacity0.25 qts
0.2 L
Oil type
80/90 Gear Lube
Speeds

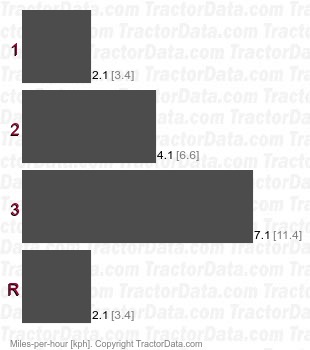

2414 T92 shaft-driven gear speeds

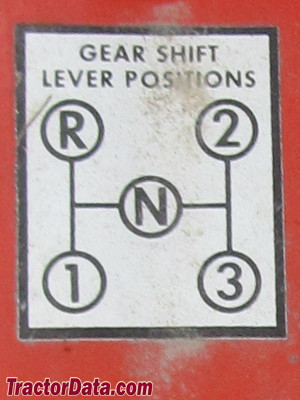

Shift Pattern
Power King 2414 transmission controls

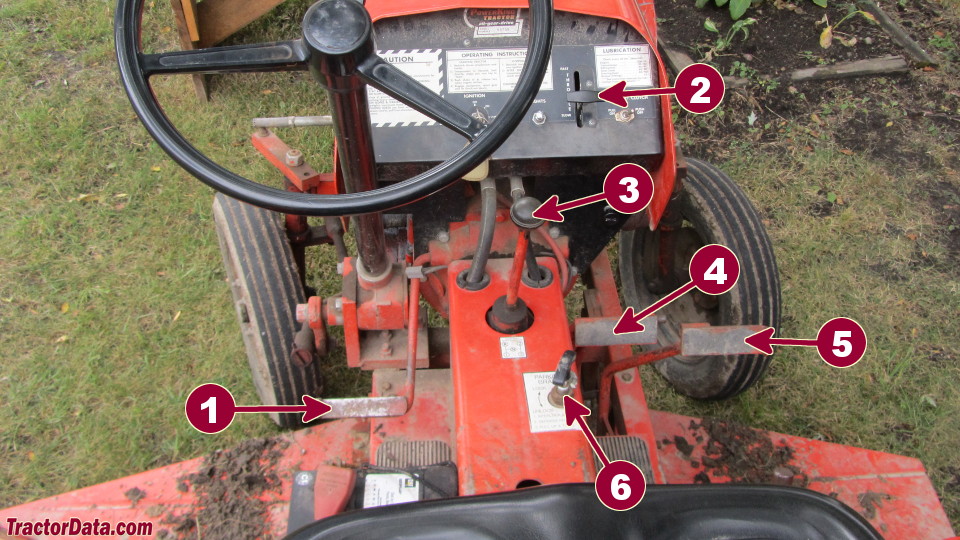

2414 Transmission Controls
Power King 2414 transmission controls
1Clutch
2Throttle
3Gear shift
4Left brake
5Right brake
6Parking brake
Transmission
Typeshaft-driven gear
Gears4 forward and 1 reverse
Clutch152.4mm dry disc
Oil capacity0.1875 qts
0.2 L
Speeds
2414  shaft-driven gear speeds
Transmission
TransmissionBorg-Warner T92
Typeshaft-driven gear
Gears9 forward and 3 reverse
Clutch152.4mm dry disc
Optional creeper for 3-speed transmission.
Speeds

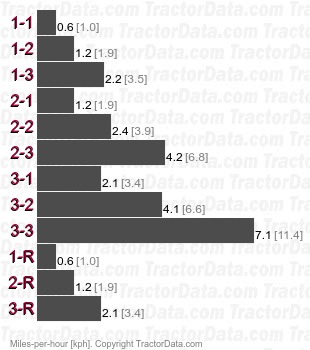

2414 T92 shaft-driven gear speeds
