Lawn Tractors > Power King > 1614

Power King 1614 Transmission



Power King 1614 lawn tractor photo
1977 - 1993
Model year
1600 Series
Garden tractor
Transmissions overview
3-speed gear
4-speed gear
9-speed gear
Transmission
TransmissionBorg-Warner T92
Typeshaft-driven gear
Gears3 forward and 1 reverse
Clutch152.4mm dry disc
Oil capacity0.25 qts
0.2 L
Oil type
80/90 Gear Lube
Speeds
1614 T92 shaft-driven gear speeds
Transmission
Typeshaft-driven gear
Gears4 forward and 1 reverse
Clutch152.4mm dry disc
Oil capacity0.1875 qts
0.2 L
Speeds
1614 shaft-driven gear speeds
Transmission
TransmissionBorg-Warner T92
Typeshaft-driven gear
Gears9 forward and 3 reverse
Clutch152.4mm dry disc
Optional creeper for 3-speed transmission. Adds a second, identical, three-speed transmission inline with the original.
Speeds

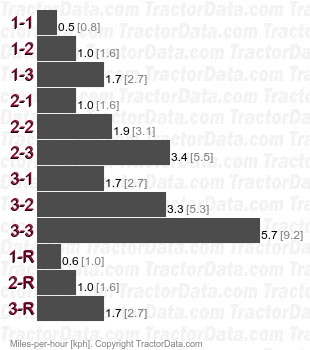

1614 T92 shaft-driven gear speeds
