Bolens 1468 Engine

Bolens 1468 lawn tractor photo
1990 - 1993
Medium Frame Series
Garden tractor
Engine Detail
Vanguard 290447
air-cooled horizontal-shaft V-Twin
Displacement480 cc
29.3 ci
Bore/Stroke2.68x2.60 inches
68 x 66 mm
Power (gross)14 hp
10.4 kW
Air cleanerdry with foam precleaner
Rated RPM3600
Starter volts12
Oil capacity1.75 qts
1.7 L
SparkplugChampion J-8
Sparkplug gap0.030 inches
0.762 mm

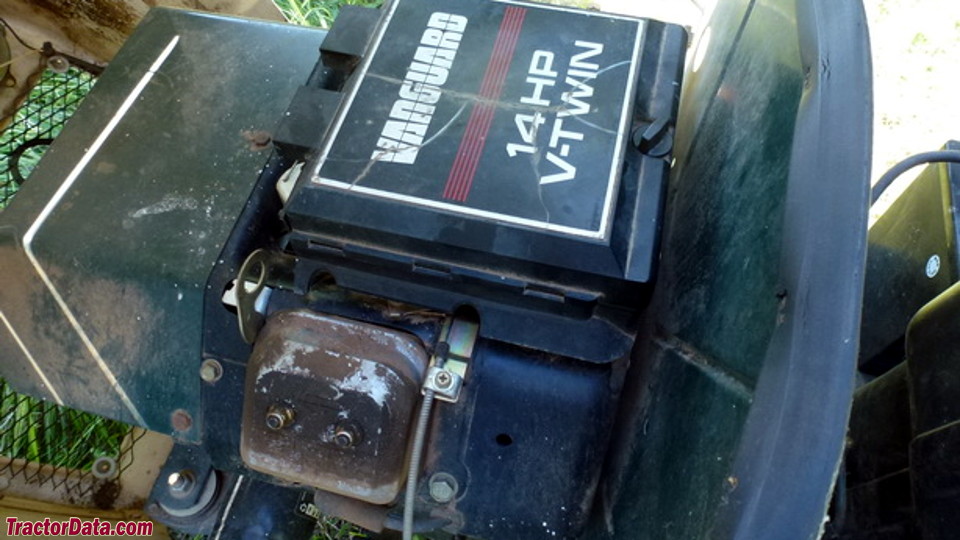

Bolens 1468 Engine
Bolens 1468 engine image
Image courtesy of Mike
