Lawn Tractors > Craftsman > 917.20401 G5100

Craftsman 917.20401 G5100 Engine



Craftsman 917.20401 G5100 lawn tractor photo
2014
G5000 Series
Garden tractor
Husqvarna built
Series map:
917.20401
917.20403
24.0hp
24.0hp
Engine Detail
Briggs & Stratton
gasoline
2-cylinder 4-valve
air-cooled vertical-shaft V-Twin
Displacement724 cc
44.18 ci
Bore/Stroke3.12x2.89 inches
79 x 73 mm
Power (gross)24 hp
17.9 kW
Starterelectric
Starter volts12
SparkplugChampion RC12YC
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

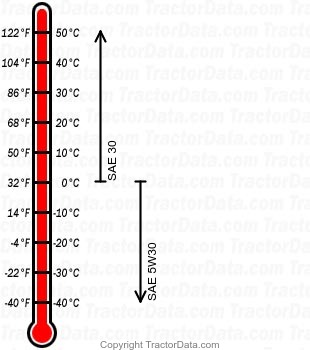

917.20401 G5100 gasoline engine oil chart
Oil capacity2 qts
1.9 L
Oil change50 h
