Lawn Tractors > Craftsman > 917.20393 T3400

Craftsman 917.20393 T3400 Engine



Craftsman 917.20393 T3400 tractor photo
2014
T3000 Series
Lawn tractor
Husqvarna built
Series map:
917.20391
917.20393
22.0hp
22.0hp
Engine Detail
Kohler
gasoline
2-cylinder 4-valve
air-cooled vertical-shaft V-Twin
Displacement725 cc
44.24 ci
Bore/Stroke3.3x2.6 inches
84 x 66 mm
Power (gross)22 hp
16.4 kW
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

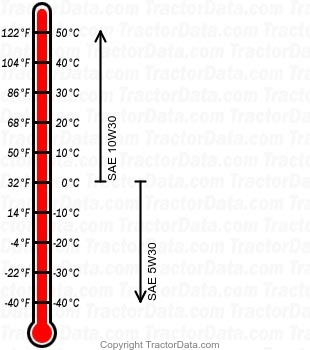

917.20393 T3400 gasoline engine oil chart
Oil capacity2 qts
1.9 L
Oil change50 h
