| | 1970 |
| Tube Frame Series | | Garden tractor |
|
Series map:
853
1053
1253
8.0hp
10.0hp
12.0hp
| Engine Detail |
| Wisconsin TRA-10D |
| gasoline |
| 1-cylinder |
| air-cooled horizontal-shaft |
| Displacement | 361 cc
22.05 ci
|
| Bore/Stroke | 3.125x2.875 inches
79 x 73 mm
|
| Power (gross) | 10 hp
7.5 kW
|
| Starter | electric
|
| Starter volts | 12
|

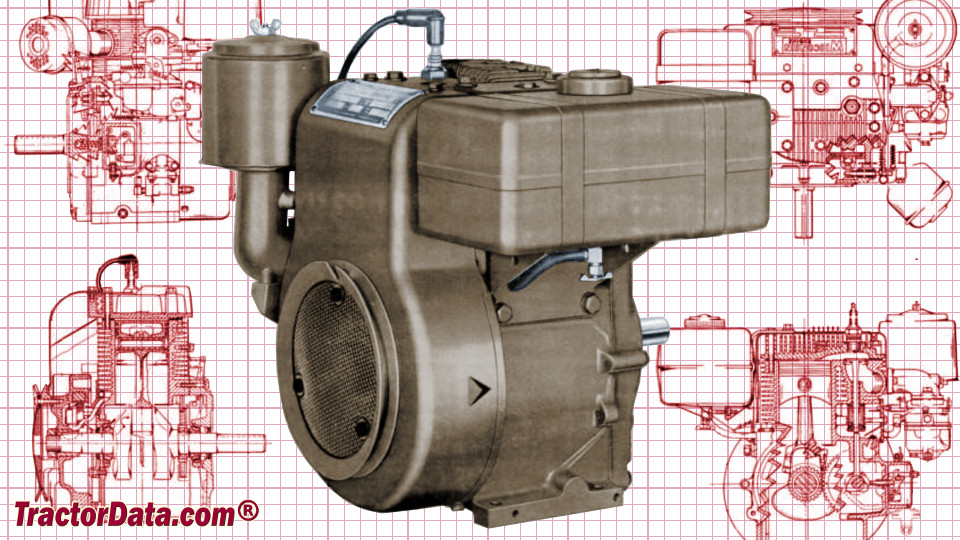

| Bolens 1053 Engine |
 |
