Wheel Horse 270-H Transmission


Wheel Horse 270-H lawn tractor photo
1996 - 2003
260 Series
Garden tractor
Series:268-H270-H
Transmission
TransmissionTuff Torq K-61A
Typebelt-driven hydrostatic
Gearsinfinite forward and reverse
Oil capacity3.5 qts
3.3 L
Oil type
SAE 10W-30
Oil changefill as needed
The K61 was used in the Toro 270-H until through the 1999 model year.
Speeds

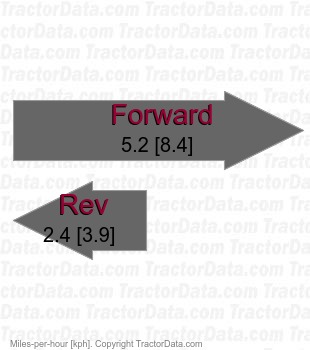

270-H K-61A belt-driven hydrostatic speeds
Wheel Horse 270-H Transmission
Wheel Horse 270-H transmission image
Image courtesy of Sorin Lungoci
Transmission
TransmissionHydro-Gear 330-3000
Typebelt-driven hydrostatic
Gearsinfinite forward and reverse
Oil capacity3.8 qts
3.6 L
Oil type
SAE 20W-50
Oil changesealed unit, service not recommended
Speeds

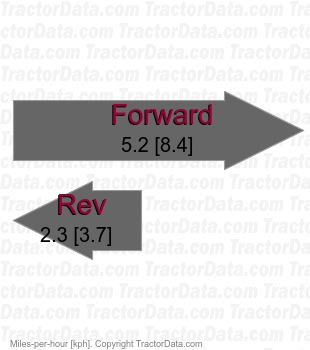

270-H 330-3000 belt-driven hydrostatic speeds
