Massey Ferguson 2820 Engine


Massey Ferguson 2820 lawn tractor photo
2002 - 2005
2800 Series
Garden tractor
Simplicity built
Series map:
2820
2823
20.0hp
23.0hp

Note: the Massey Ferguson model 2820 is the same as the Simplicity Prestige 20. The following data is from the Prestige 20 listing.
Engine Detail
Kohler CV20S
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement624 cc
38.1 ci
Bore/Stroke3.03x2.64 inches
77 x 67 mm
Power (gross)20 hp
14.9 kW
Compression8.5:1
Starterelectric
Starter volts12
Oil capacity2 qts
1.9 L

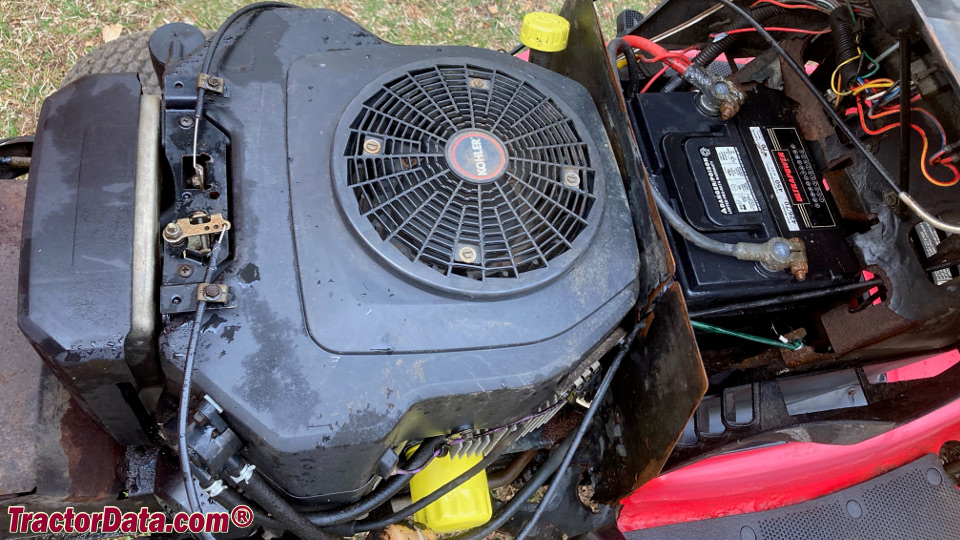

Massey Ferguson 2820 Engine
Massey Ferguson 2820 engine image
Image courtesy of Steve
