Massey Ferguson 2924D Transmission


Massey Ferguson 2924D lawn tractor photo
1998 - 2003
2900 Series
Garden tractor
Simplicity built
Series map:
2923
2924D
2925H
23.0hp
24.5hp
25.0hp

Note: the Massey Ferguson model 2924D is the same as the Simplicity Legacy 24.5. The following data is from the Legacy 24.5 listing.
Transmission
TransmissionSundstrand 15U
Typeshaft-driven hydrostatic
Gearsinfinite forward and reverse (2-range)
Oil capacity6 qts
5.7 L
Oil type
ATF F
Oil change400 h
Sundstrand 15 hydrostatic with Peerless 2600 transaxle.
Speeds

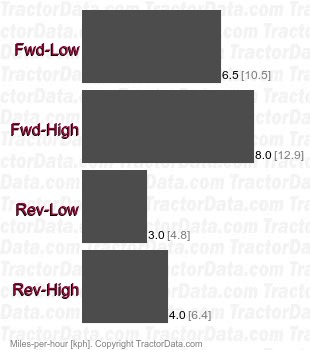

2924D 15U shaft-driven hydrostatic speeds
