Massey Ferguson 2925H Engine


Massey Ferguson 2925H lawn tractor photo
1998 - 2003
2900 Series
Garden tractor
Simplicity built
Series map:
2924D
2925H
24.5hp
25.0hp

Note: the Massey Ferguson model 2925H is the same as the Simplicity Legacy 25. The following data is from the Legacy 25 listing.
Engine Detail
Kohler CH740
gasoline
2-cylinder
air-cooled horizontal-shaft V-Twin
Displacement726 cc
44.3 ci
Bore/Stroke3.27x2.64 inches
83 x 67 mm
Power (gross)25 hp
18.6 kW
Compression9:1
Starterelectric
Starter volts12
Oil capacity2.1 qts
2.0 L
Massey Ferguson 2925H Engine

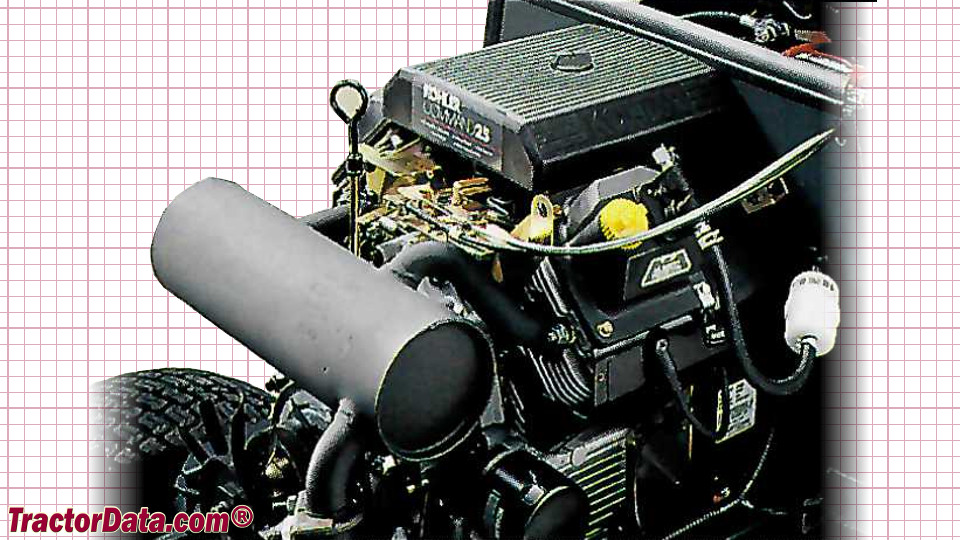

Massey Ferguson 2925H engine image
Image courtesy of Mark Salamack
