Simplicity Sovereign 7016 Engine
|
|
| Engine Detail | |
| Briggs & Stratton 326431 | |
| gasoline | |
| 1-cylinder | |
| air-cooled horizontal-shaft | |
| Displacement | 531 cc 32.4 ci |
| Bore/Stroke | 3.56x3.25 inches 90 x 83 mm |
| Power (gross) | 16 hp 11.9 kW |
| Air cleaner | oiled foam |
| Rated RPM | 3600 |
| Starter | electric |
| Starter volts | 12 |
| Oil capacity | 2 qts 1.9 L |
| Sparkplug | Champion CJ-8 |
| Sparkplug gap | 0.030 inches 0.762 mm |
| Point gap | 0.020 inches 0.508 mm |

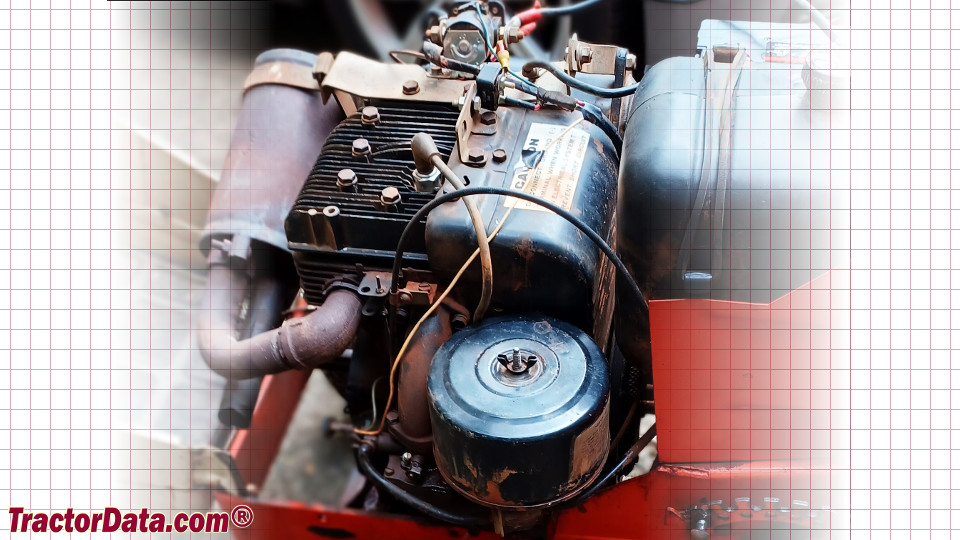

| Simplicity 7016 Engine | |
 | |
| Image courtesy of Claude Gagne |
