Wheel Horse 212-6 Engine


Wheel Horse 212-6 lawn tractor photo
1987 - 1988
Lawn tractor
Series map:
212-6
12.5hp
Engine Detail
Kawasaki FB460V
gasoline
1-cylinder
air-cooled
Displacement460 cc
28.1 ci
Bore/Stroke3.50x2.91 inches
89 x 74 mm
Power (gross)12.5 hp
9.3 kW
Compression6.4:1
Starterelectric
Starter volts12
SparkplugNGK BMR4A
 Champion RCJ8
Sparkplug gap0.026 inches
0.660 mm

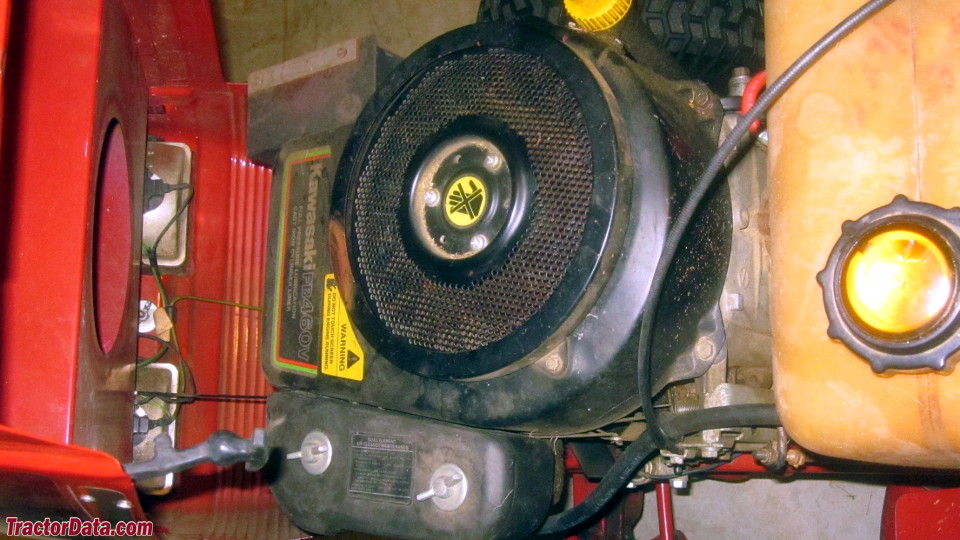

Wheel Horse 212-6 Engine
Wheel Horse 212-6 engine image
Image courtesy of Rich Clinchy
