Lawn Tractors > Sears > Suburban 12 917.25350

Sears Suburban 12 917.25350 Transmission



Sears Suburban 12 917.25350 lawn tractor photo
1966 - 1971
Model year
Suburban Series
Garden tractor
Roper built
Transmission
Typebelt-driven gear
Gears6 forward and 2 reverse
Oil capacity5 qts
4.7 L
Oil type
SAE 30
Oil change500 h
Three gears (1-3) plus reverse (R) with two ranges (low-high).

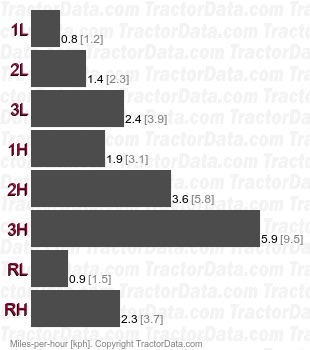

Speeds
Suburban 12 917.25350 belt-driven gear speeds

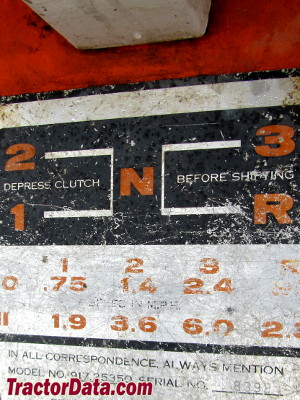

Shift Pattern
Sears Suburban 12 transmission controls

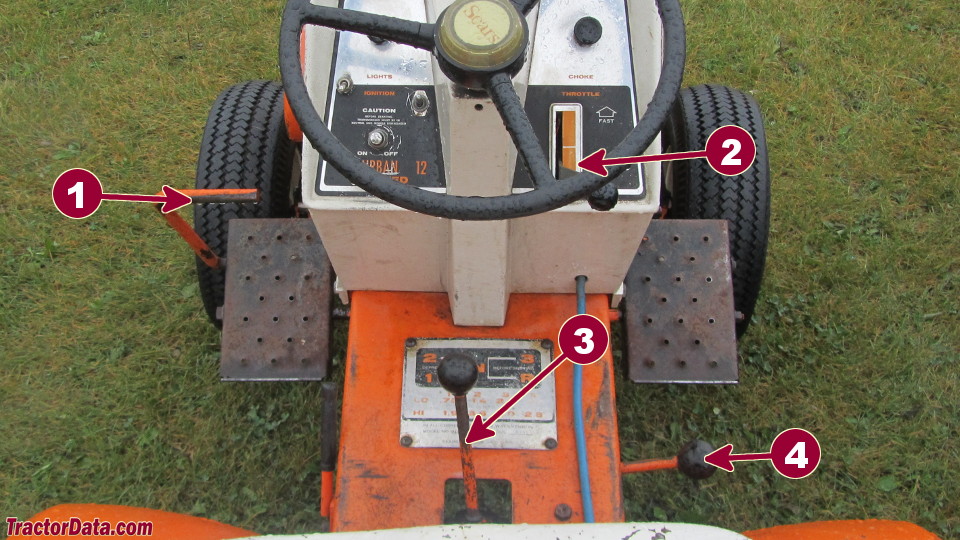

Suburban 12 Transmission Controls
Sears Suburban 12 transmission controls
1Clutch/brake
2Throttle
3Gear shift
4Range shift
