Lawn Tractors > Sears > Suburban 10 917.60646

Sears Suburban 10 917.60646 Transmission



Sears Suburban 10 917.60646 tractor photo
1965 - 1967
Model year
Suburban Series
Garden tractor
David Bradley built
Series map:
Suburban 8
Suburban 10
8.0hp
10.0hp
Transmission
Typebelt-driven mechanical CVT
Gearsinfinite forward and reverse
Oil capacity2 qts
1.9 L
Oil type
SAE 90 EP Gear Lube
Oil change500 h
Over-center clutch lever selects forward, reverse, or neutral. Variable speed lever adjusts speed of travel.

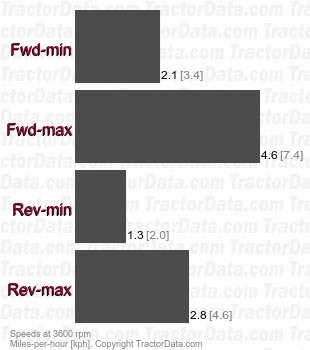

Speeds
Suburban 10 917.60646 belt-driven mechanical CVT speeds
