Lawn Tractors > John Deere > D105

John Deere D105 Engine



John Deere D105 lawn tractor photo
2013 - 2017
D100 Series
Lawn tractor
Series map:
D100
D105
D110
17.5hp
17.5hp
19.5hp
Engine Detail
Briggs & Stratton 31G777
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement499 cc
30.5 ci
Bore/Stroke3.57x3.06 inches
91 x 78 mm
Power (gross)17.5 hp
13.0 kW
Air cleanerdry
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Intake valve clearance0.004 inches
0.102 mm
Exhaust valve clearance0.006 inches
0.152 mm
Engine Oil

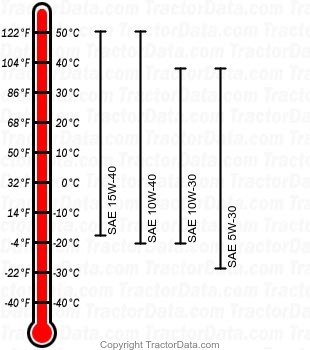

D105 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
