| Engines overview |
| 13HP Briggs & Stratton 458cc gasoline |
| 13HP Briggs & Stratton 344cc gasoline |
| Engine Detail |
| Briggs & Stratton 28M707 |
| gasoline |
| air-cooled |
| Displacement | 458 cc
28 ci
|
| Power (gross) | 13 hp
9.7 kW
|
| Air cleaner | foam and paper elements
|
| Starter | electric
|
| Starter volts | 12
|
| Sparkplug | Champion RC12YC
|
| Sparkplug gap | 0.030 inches
0.762 mm
|

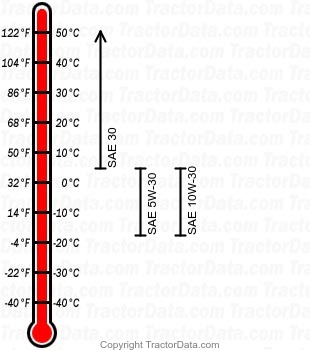

| Engine Oil |
|
| Oil capacity | 1.5 qts
1.4 L
|
| Engine Detail |
| Briggs & Stratton 21A907 |
| gasoline |
| air-cooled |
| Displacement | 344 cc
21 ci
|
| Power (gross) | 13 hp
9.7 kW
|
| Air cleaner | foam and paper elements
|
| Starter | electric
|
| Starter volts | 12
|
| Page information |
 |
| Copyright 2023 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on June 22, 2012 |
