Craftsman 917.25481 FF/18 Engine


Craftsman 917.25481 FF/18 lawn tractor photo
1981 - 1982
FF Series
Garden tractor
Roper built
Series map:
917.25481
917.25482
18.0hp
20.0hp
Engine Detail
Briggs & Stratton 422437
gasoline
2-cylinder
air-cooled opposed-twin
Displacement693 cc
42.33 ci
Bore/Stroke3.44x2.28 inches
87 x 58 mm
Power (gross)18 hp
13.4 kW
Rated RPM3600
Torque27.8 lb-ft
37.7 Nm
Torque RPM2700
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

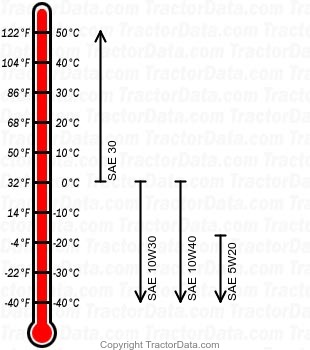

917.25481 FF/18 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
Oil change25 h
