Cub Cadet 1430 Engine

Cub Cadet 1430 lawn tractor photo
1992 - 1993
Lawn tractor
Series map:

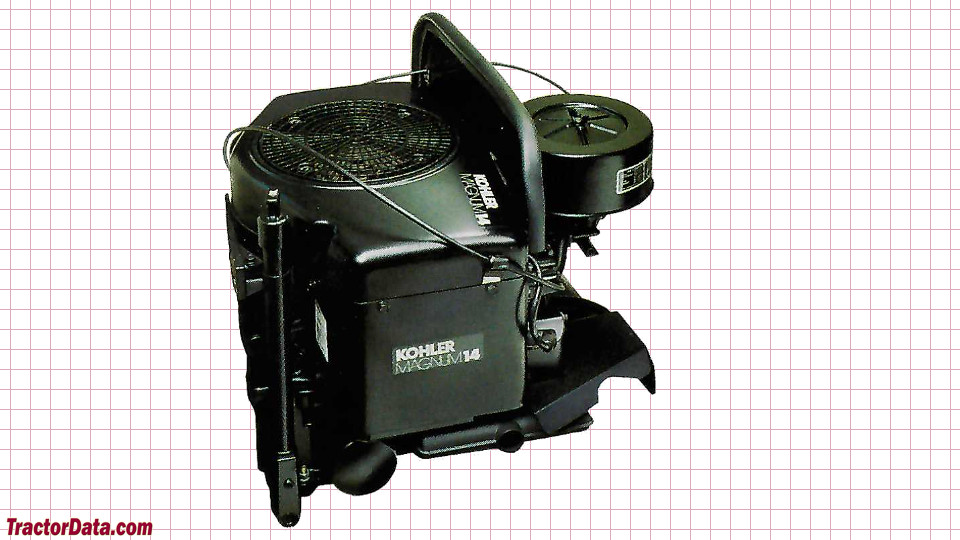

Engine Detail
Kohler MV16
air-cooled vertical-shaft opposed-twin
The engine on the Cub Cadet 1430 was labeled "Magnum 14", but is not the horizontal-shaft M14 Magnum. It is a de-rated MV16.
Displacement691 cc
42.18 ci
Bore/Stroke3.125x2.75 inches
79 x 70 mm
Power (gross)14 hp
10.4 kW
Idle RPM1350-3400
Starter volts12
Sparkplug gap0.025 inches
0.635 mm
Engine Oil

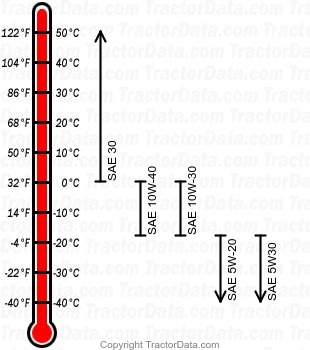

1430 gasoline engine oil chart
Oil capacity2 qts
1.9 L
Oil change50 h
Cub Cadet 1430 Engine
Cub Cadet 1430 engine image
