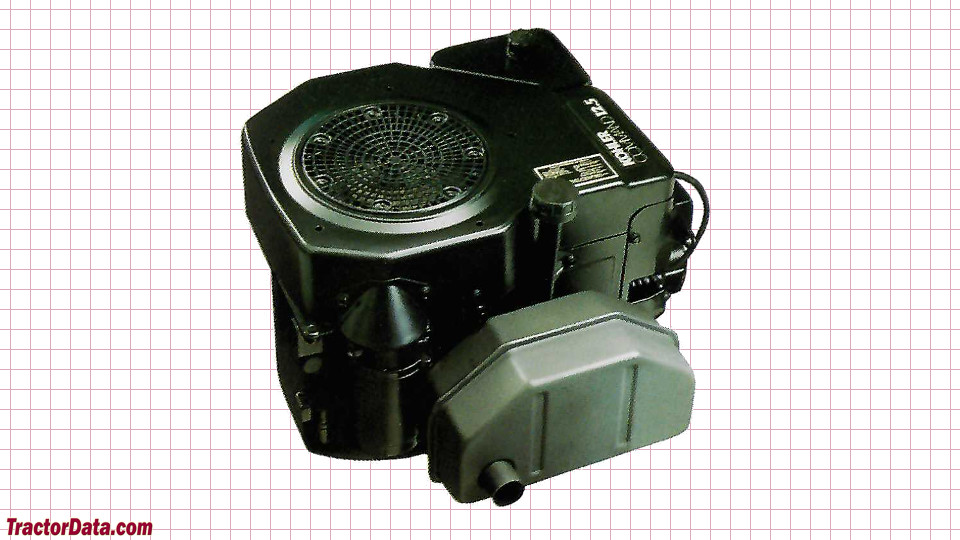

| Engine Detail |
| Kohler |
| gasoline |
| 1-cylinder |
| air-cooled vertical-shaft |
| Displacement | 398 cc
24.29 ci
|
| Bore/Stroke | 3.43x2.64 inches
87 x 67 mm
|
| Power (gross) | 12.5 hp
9.3 kW
|
| Idle RPM | 1800-3300
|
| Starter | electric
|
| Starter volts | 12
|
| Sparkplug | RC12YC
|
| Sparkplug gap | 0.040 inches
1.016 mm
|

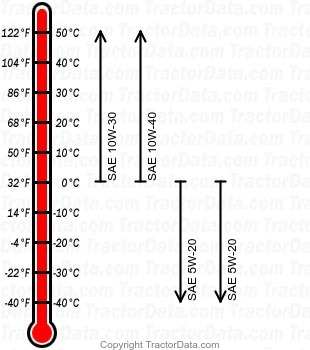

| Engine Oil |
|
| Oil capacity | 2 qts
1.9 L
|
| Oil change | 100 h
|
| Cub Cadet 1325 Engine |
 |
