Cub Cadet 1320 Engine


Cub Cadet 1320 lawn tractor photo
1989 - 1991
Lawn tractor
Series map:
1315
1320
12.5hp
12.5hp
Engine Detail
Kohler
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement398 cc
24.29 ci
Bore/Stroke3.43x2.64 inches
87 x 67 mm
Power (gross)12.5 hp
9.3 kW
Idle RPM1800-3300
Starterelectric
Starter volts12
SparkplugRC12YC
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

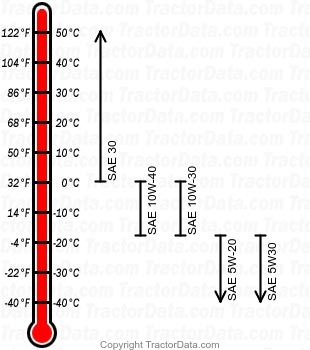

1320 gasoline engine oil chart
Oil capacity2 qts
1.9 L
Oil change100 h
